HMHCAB3.5-2190W
Heat My Home 2190W 147m Underfloor Heating Cable Heatcom
Heat My Home 2190W 147m Underfloor Heating Cable from Heatcom.
Key Features:
- Suited for most floor covering types
- Installation is easy and versatile
- Heat output adjustable to desired level by altering the cable spacing
- You can mix and match cable sizes to provide the perfect coverage

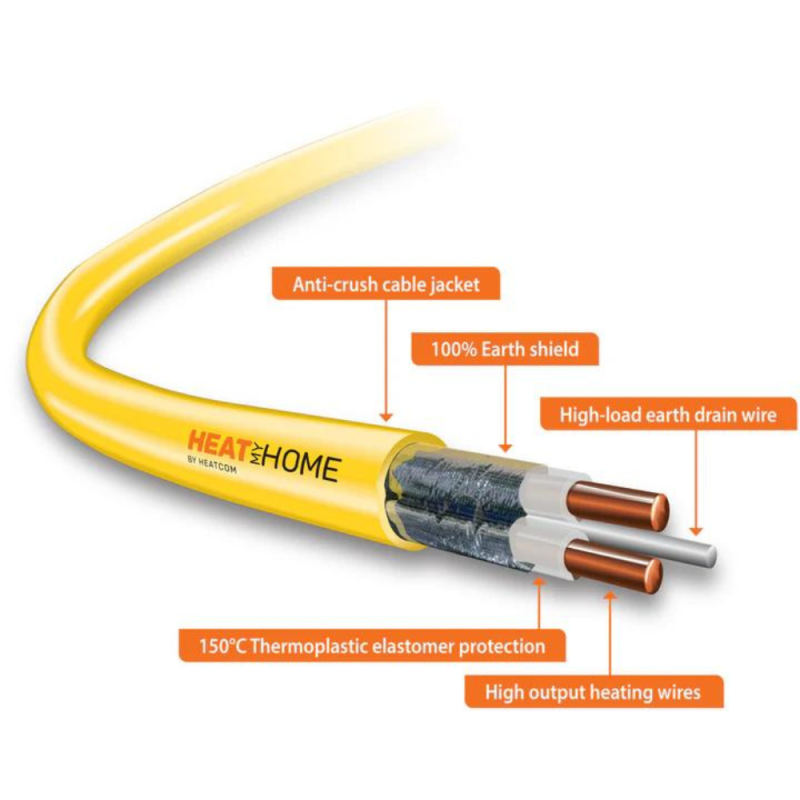

- Safety guaranteed by anti-crush cable jacket and 100% earth shield
- Power Output: 15 W/m
- Cable diameter: Ø3.5 mm
- Inner conductor, insulation: High-temperature TPE
- Cold tail: 2.5 m
- Approval CE
- Cable type: 2 wires + shield
- Screen: Aluminium mylar tape and copper conductor
- Outer sheath: Polyolefin
- Maximum permissible cable temperature: 90 °C
- Overall height: 4mm additional build height
- Warranty: 15 years
- Standard: EN60335-2-96
- Tolerance resistance: -5%/+10%
- Tolerance length: +/- 2%
Product Information
The underfloor heating cables are compatible with all mains-voltage underfloor heating controllers, allowing independent adjustment of floor and air temperatures. It's essential to avoid placing the cables directly under furniture unless there is a 50mm air gap underneath for effective heat dispersal. When installing, the cables can be secured to the floor using a cable carrier mat (anti-fracture membrane) or masking/double-sided tapes, which must be purchased separately.
Product Details
| Brand | Heatcom |
|---|---|
| Wattage | 2190W |
| Voltage | 240V | Datasheet | Download |
