ROH106B/030
6 Amp 10kA 30mA 1 Module RCBO Type B Cudis

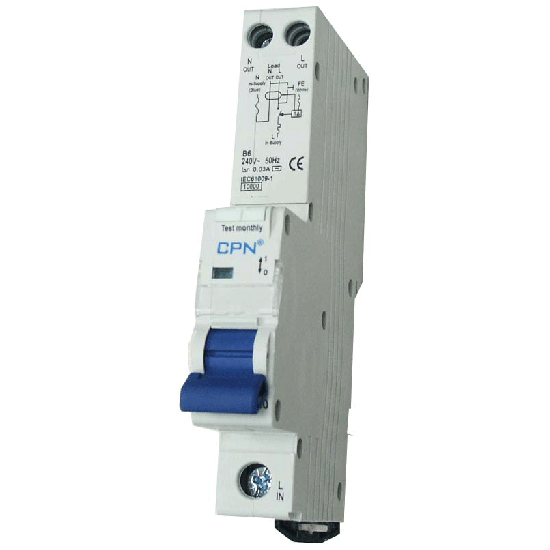

This is a 6 Amp 10kA 30mA 1 Module RCBO (Type B) from Cudis.
Key Features
- The ROH range is a 1 Pole 1 Module device
- Provides overload and short circuit protection in one unit
- Complete with integral test button
- Complies with EN61009
- Type B
- 10kA interrupt capacity
- Current ratings (A) – 6A
- 30mA tripping current
- Connection terminal: pillar terminal with clamp
- Conductor capacity: flexible 10mm², rigid 16mm²
- 35mm DIN rail mount
- Panel mounting
Product Information
RCBO’s (Residual Circuit Breaker with Overload)are a combination of an RCD and MCB in one unit. The ROH range of RCBO's provide B type tripping curves (MCB), with a 30mA tripping current (RCD).This enables both over-current protection and earth fault current protection to be provided by a single unit and allows earth fault protection to be restricted to a single circuit, ensuring only the circuit with the fault is interrupted, limiting inconvenience tripping of many circuits.
All CPN products are manufactured to the highest standards at ISO accredited facilities to our design and specification which ensures a quality product at an exceptional price.
Product Details
| Brand | Cudis |
|---|---|
| Weight (kg) | 0.200000 |
| Number of Modules | 1 |
| Tripping Characteristics | B Curve |
| Short Circuit Rating | 6KA | Datasheet | Download |
