LHMC06-RC80

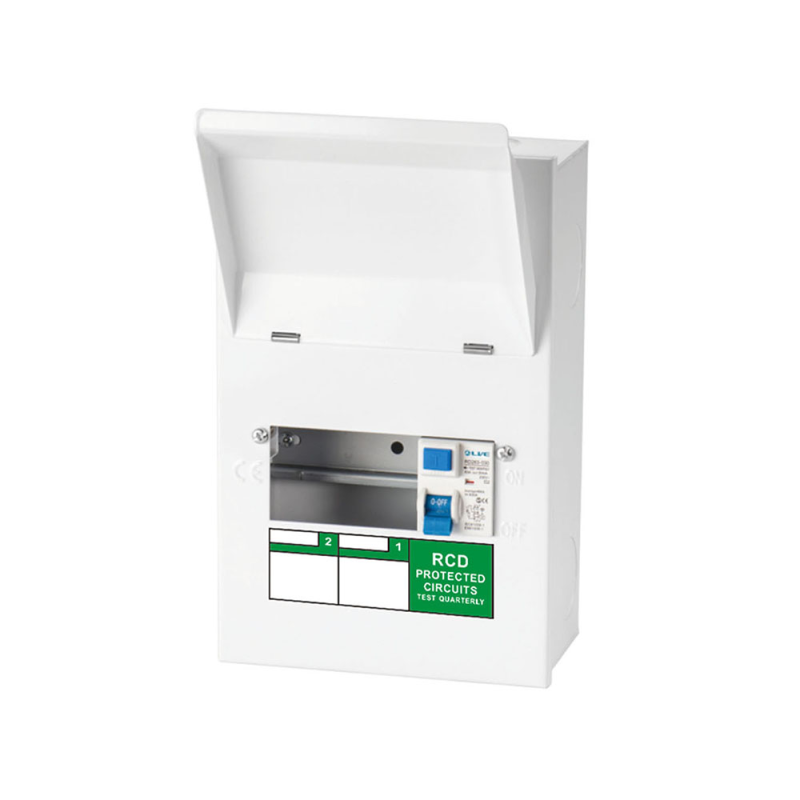

Live 6 Ways Metal Clad Consumer Unit 80A RCD (4 Usable Ways) Live Electrical White
This is a 6 Ways Metal Clad Consumer Unit 80A RCD with 4 Usable Ways. Live Electrical's consumer units come with DP 63A/80A 30mA RCD. Their busbar fittings are suited for MCBs.
Key Features:
- Standard: BSEN61008, BS EN60898, BS EN61439-3
- Operating Voltage: 230/50Hz
- Width: 161mm
- Height: 252mm
- Depth: 110mm
- Maximum Load(A): as indicated on incoming device
Product Information
These metal consumer units are fully enclosed in a metal body and a drop down metal lid. They have multiple circular cable entry knock-outs (25 and 32mm) on the top as well as on the sides and back (40mm) and larger rear slots. Their raised key holes make for secure and easy installation. The raised din rail design improves cable routing applications.
Live Electrical's consumer units have a modern style and a white polyester powder coating to RAL9010. They have a large and accessible wiring space plus extra space for RCBOs. The flexible connection applications allow for many different configurations of protected ways
Product Details
| Brand | Live Electrical |
|---|---|
| Voltage | 230V |
| IP Rating | IP40 |
| Number of ways | 6 |
| Amp | 80 |
| Colour | White |
| No. of Poles | 1 |
| Material | Steel | Datasheet | Download |
