ECH100-W50/CH

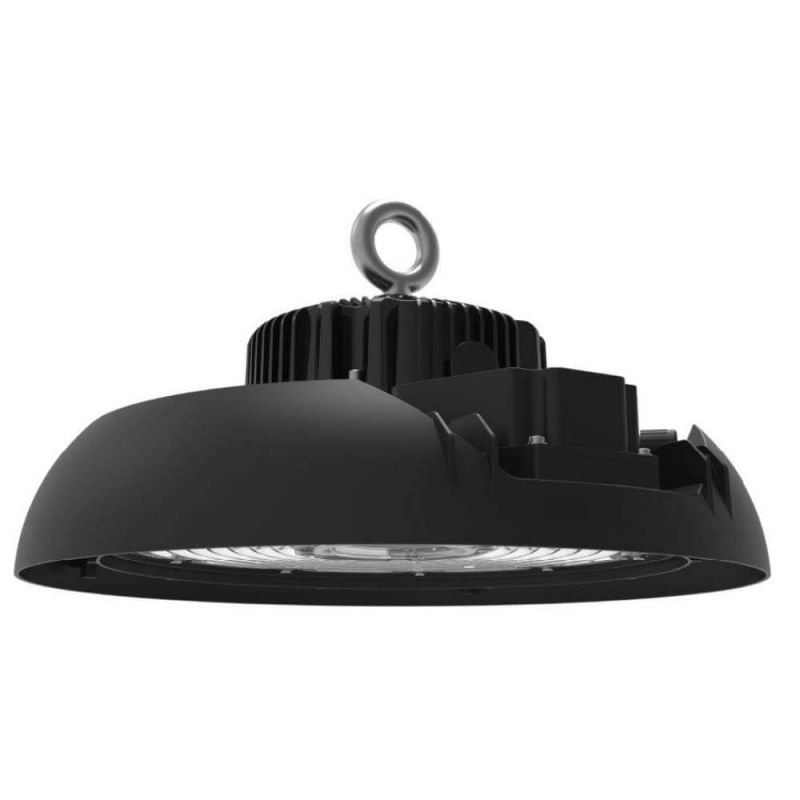

Echo II 100W LED , 5000K Kosnic High Bay
In general industrial sectors, manufacturing, warehousing, leisure facilities, and retail locations, Kosnic's Echo II 100W High Bay luminaire provides outstanding energy savings and high performance, replacing conventional lighting.
Key Features Include:
- Diecast aluminium body
- Long lifespan of 40,000 hours
- Suspension installation
- IP65 rated
- IK08 rated (vandal resistant)
- 1.5 metres of H05RN-F 3 x 1mm² cable provided
- Ultra-high efficieny
General Specification:
- Power: 100W
- Model: KHBE100C2-W50
- Beam Angle: 90°
- CCT: 5000K
- Lumen Output: 14500lm
Customers Also Purchased (2)
Product Information
Kosnic's 100W Echo II high bay offers huge energy savings with an impressive performance of 145 lumens produced per wattage. This efficiency combine with a long life expectancy of 40,000 hours dramatically reduces maintenance costs when compared to traditional lighting.
The Echo High Bay comes with an eyelet for suspension attachment (suspension chain not included) as well as a variety of shade options. There are other choices for an emergency module and a microwave sensor. If you wish to purchase any accessories, please contact us directly.
Product Details
| Brand | Kosnic |
|---|---|
| Depth (mm) | 166 |
| Weight (kg) | 2.600000 |
| Type | High Bay |
| Wattage | 100W |
| Beam Angle (°) | 90 |
| Voltage | 100-240Vac 50-60Hz |
| Start Time (s) | 0.40 |
| Diameter (mm) | 259 |
| Ambient Temperature (°C) | -20 to 40 |
| Class Protection | Class I |
| Rated Lifetime (hrs) | 40,000 |
| Flicker | 1.7% |
| Luminous Flux | 14,500lm |
| Lumens | 14500 |
| In-rush Current (peak/duration) | 66.5 A /33 us |
| Current (mA) | 453 |
| Switch Cycles | 50,000 |
| IP Rating | IP65 |
| LMF at Lifetime | 0.75 |
| Colour Temperature | 5000K |
| IK Rating | 08 |
| Warranty | 3 Years |
| Connection | Supplied with 1.5m H05RN-F 3 x 1.0mm² | Datasheet | Download |
Delivery Information
| Location | Shipping Method | Shipping Charges | Timescales |
|---|---|---|---|
| Mainland UK | Standard Delivery | £3.95 | 1-2 days from dispatched |
| Northern Ireland | Standard Delivery | £3.95 | Next working day once dispatched |
| Republic of Ireland | Standard Delivery | £3.95 | Next working day once dispatched |
* Please note that delivery prices and services may vary depending on other items in your basket and your exact delivery postcode. Find out more about our delivery services.
Cancellations and Returns
Meteor Electrical Limited will accept returns up until 14 days after dispatch date on the conditions
- The Goods are in all original packaging
- The materials contain all original documentation (instructions, manuals, warranties or any other literature)
- Product is deemed by our returns department to be in a re-sellable condition
All refunds are made to the same payment method used originally to place the order (e.g. VISA Card) - unless specifically requested otherwise.
Faulty Products
- Products that are faulty must be returned within the manufacturer’s warranty period.
- The complete product must be returned, unless previously agreed by Meteor Electrical in writing; incomplete items of parts may not be returned.
- Products within the manufacturers specific warranty period will be repaired, replaced, or a refund given at the discretion of the Manufacture.
Frequently Asked Questions
The LED Echo High Bay is intended for use in a variety of industrial settings. The light fitting has an aluminum body, which is appropriate for high demands environments due to the material's strength and durability. The common installations would be:
- Warehouses
- Manufacture Buildings
- Retail Environments.
The LED Echo High Bay from Kosnic is exceptionally corrosion resistant. The product is further protected by the diecast aluminum body, which strengthens the light fixture's durability. Over time, the LED Echo High Bay will not corrode.
The Kosnic KHBE100C2-W50 is replacing the KMHD100C1/50/CH. The KMHD100C2-W50 is the more efficient upgrade of the KHBE100C2-W50.The key difference of the KHBE100C2-W50 the high lumen of 14,500lm producing more light while reducing the energy costs. The KMD100C2-W50 is more energy friendly and will save the end user money.
The LED Echo High Bay has a 40,0000-hour life expectancy.
The Kosnic’s LED Echo High Bay has a rating of IP65. The ingress protection provides the light fixture with full protection against extreme dust and is extremely waterproof. The IP65 rating means the lighting system is suitable for industrial environments.
The Kosnic’s LED Echo High Bay has a rating of IK10. This light fixture is fully protected against dust which is ideal for manufacturing and warehouse industries.
The Kosnic’s LED Echo High Bay provides a colour tempeture of 5000K. The 5000K provides the colour day light which is the ideal solution for industrial environment that requires bright lighting to complete work tasks safely.
No, the Kosnic LED Echo High Bay lights are not dimmable.
